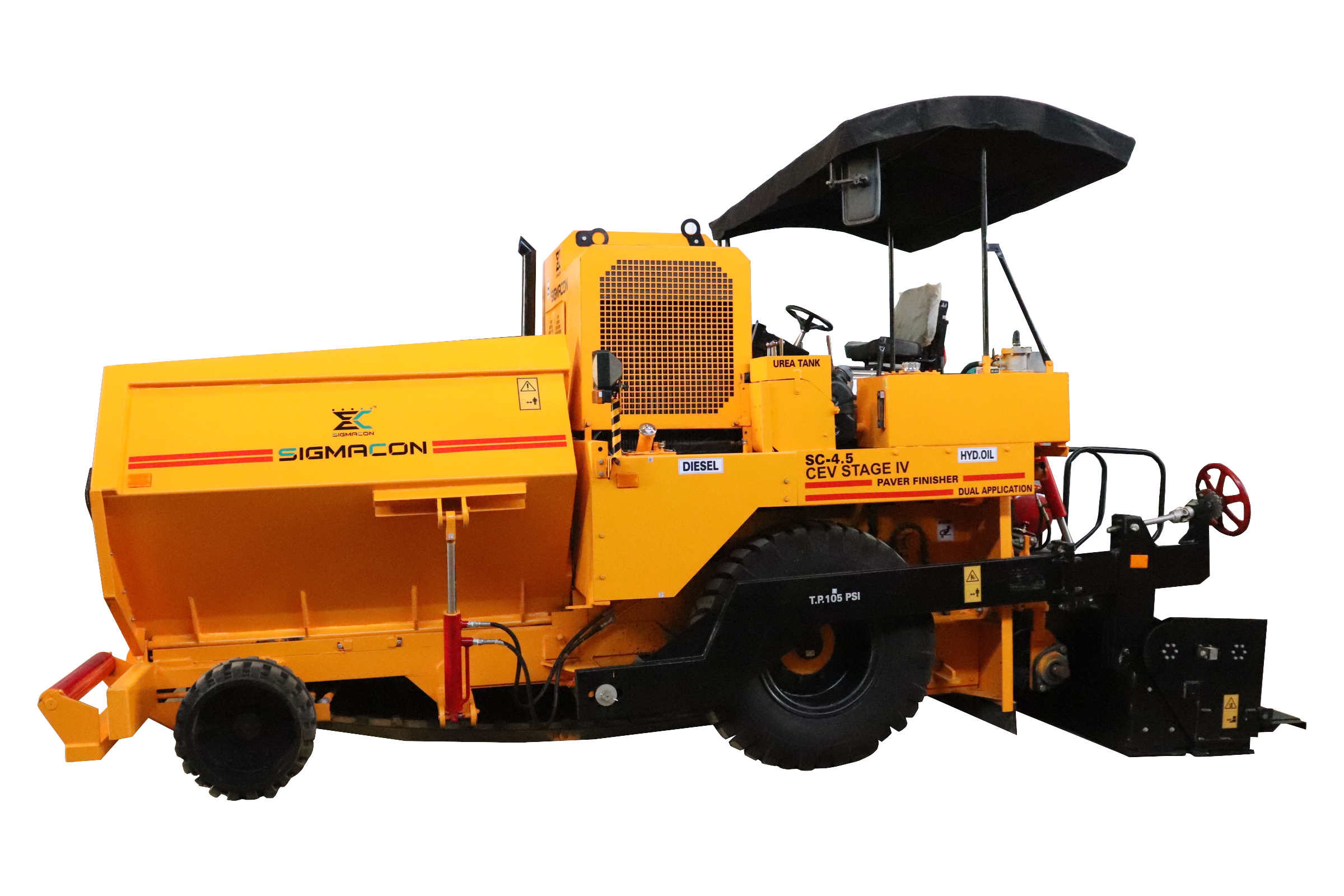

Introducing the SC-4.5 CEV STAGE IV wheeled paver, specifically for intercity roads, village roads and compact roads with higher laydown rate. Paver features including Kirloskar BS-IV engine to deliver the highest quality paving results across a wide range of projects. Maximum availability time with reliable components serving ease of operation and all-round support from SIGMACON.

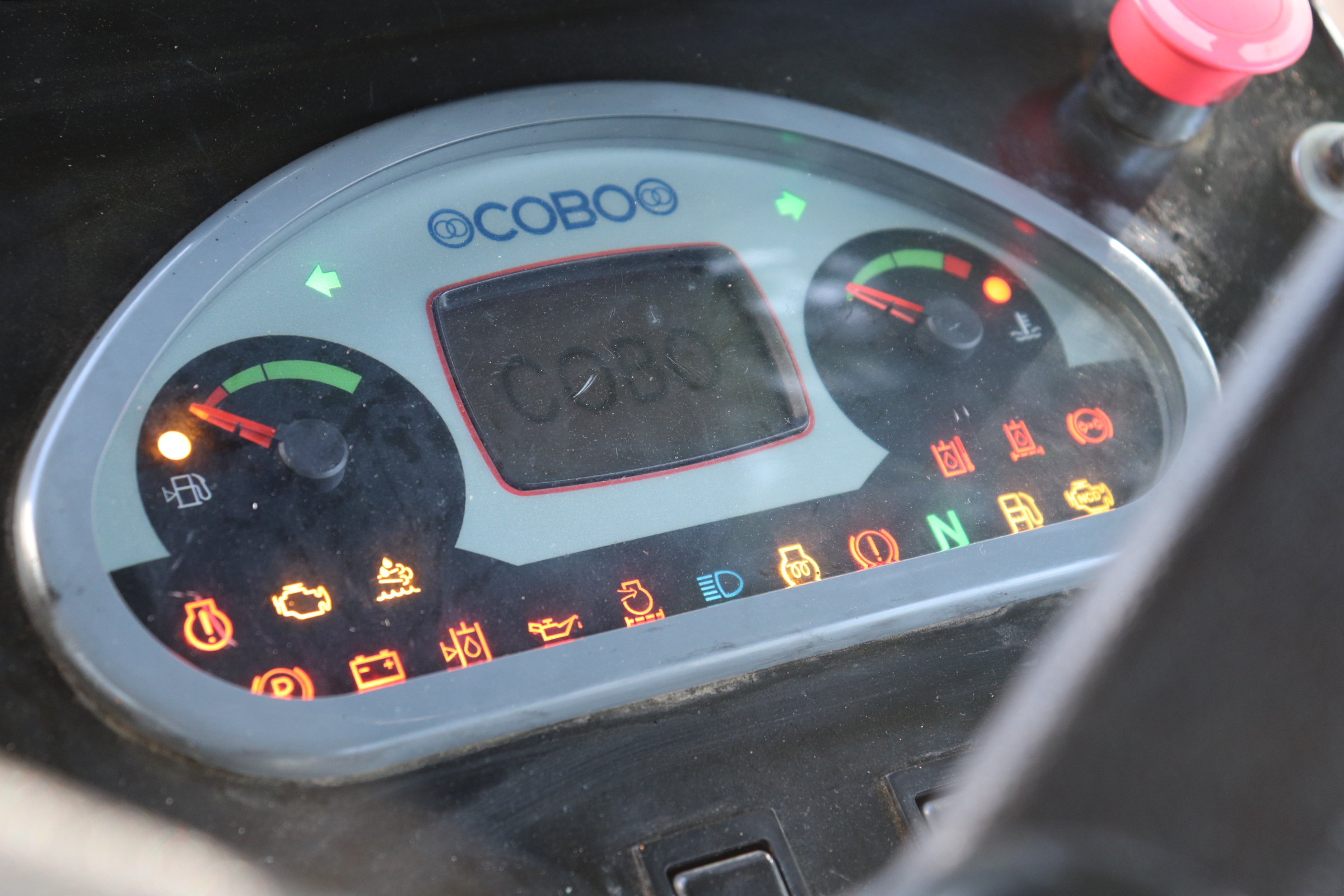

The paver operator’s console is ergonomically designed according to practical principles. with advent of bs-iv engine, each function on cluster is easily identifiable and seamlessly integrated.
SC-4.5 CEV STAGE IV is highly equipped with safety features as parking brake newly introduced and designed for best in class ergonomics. also the safety labels to enhance the operators safety while functioning.

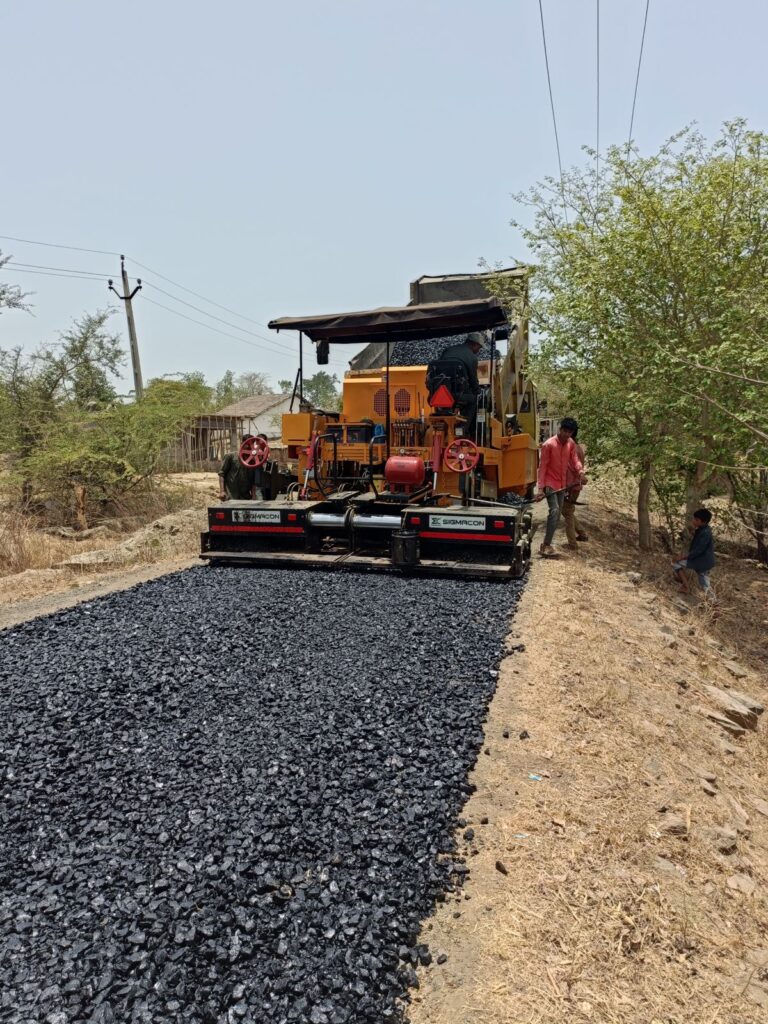

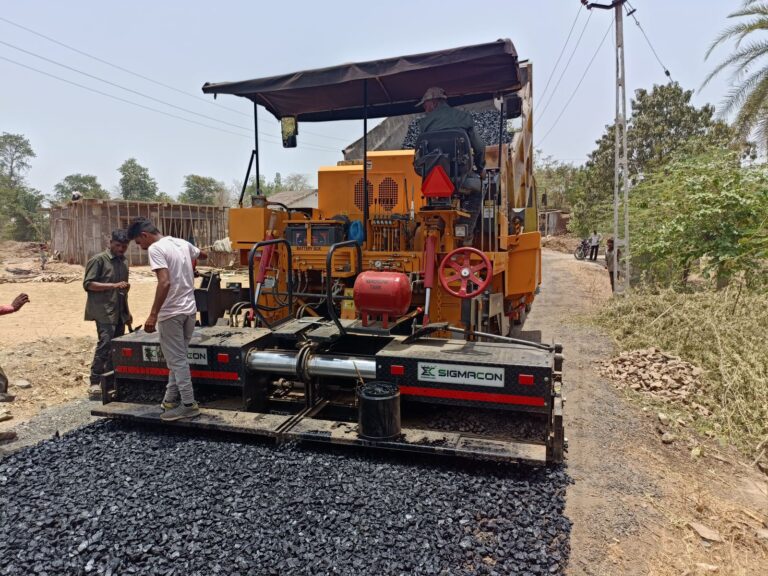

whether it is paving walkways, minor roads, parking spaces, intra and intercity roads, SC-4.5 masters every job seamlessly and quickly with high engine output.

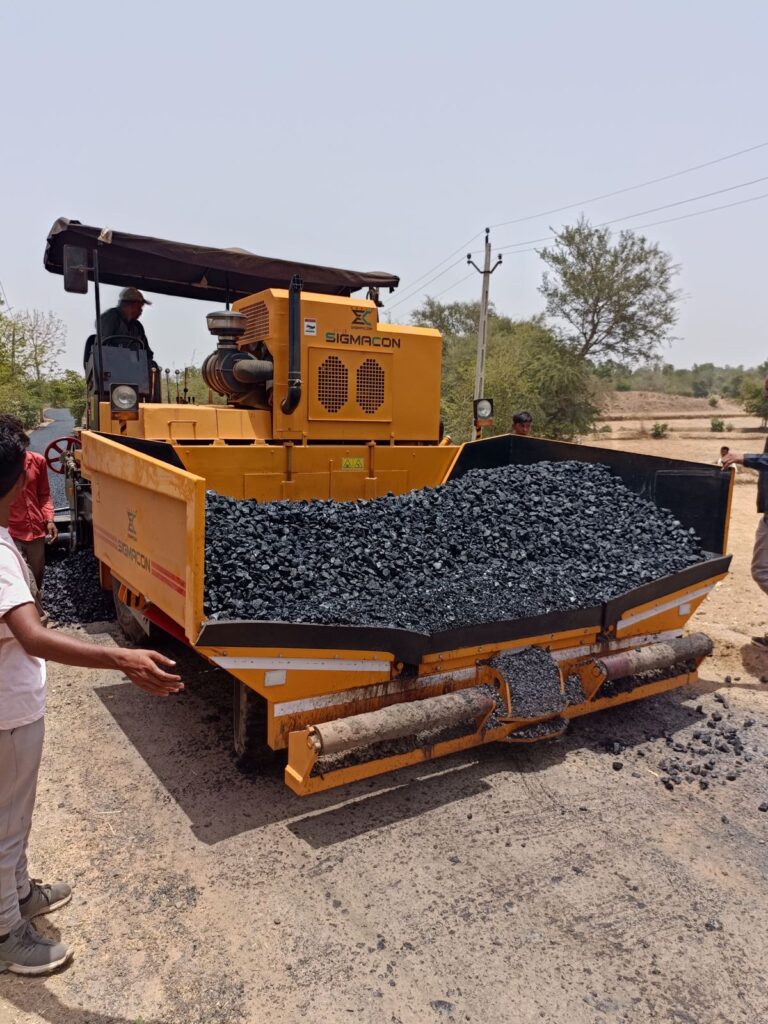

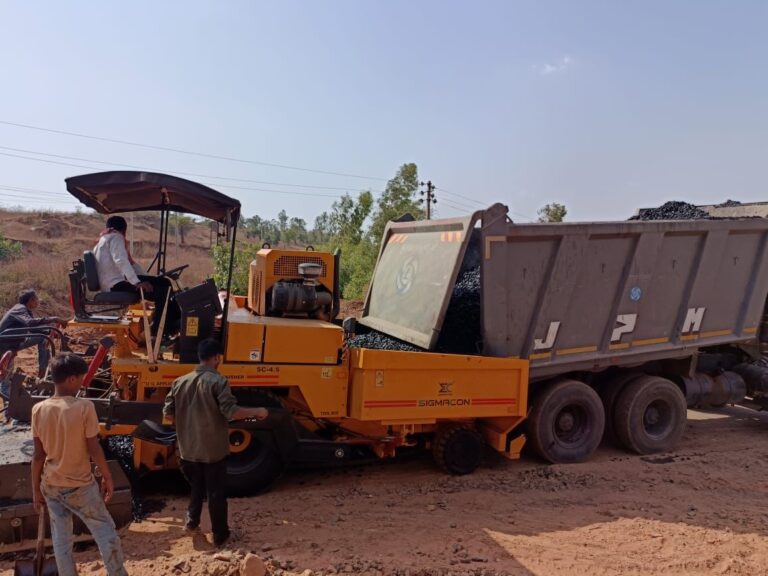

SC-4.5 CEV STAGE IV handles wide range of material i.e. wet mix, asphalt and DLC, thanks to its large hopping capacity which supports relentless work. also excellent paving operation with vibrating and heating function of screed
| Paving Width | 2.5 to 4.5 meters (Hydraulically Extendable Screed) |
| Paving Speed | 1.25-23 meter/minute |
| Paving Thickness | 10-200 mm |
| Screed Heating Feature | Oil Burners |
| Screed Vibration | 0-30 Hz |
| Crown | -1 to +3 |
| Engine Make | Kirloskar BS-IV Model 4R1190ta1 |
| Engine Output | 110 HP at @2200 rpm |
| Travel Speed | 0-19 KMPH |
| Hopper Capacity | 4 cubic meters ( Approx. ) |
| Fuel Tank Capacity | 120 litres |
| Hydraulic Oil Tank Capacity | 80 litres |
| Urea Tank Capacity | 16 litres |
| Material Suitability | Bituminous , WetMix Material & DLC. |
| Battery | 12 Volts (150 ah) |
| Steering | Power Steering |
| Standard Accessories | Tool Box & Spares |
| Operating Height | 2970 mm |
| Shipping Height | 2290 mm |
| Length | 5720 mm |
| Operating Width | 3160 mm |
| Shipping Width | 2700 mm |
| Weight (approx.) | 10 tons |
| Truck Dumping Clearance | 600 mm |
| WheelBase | 2500 mm |
| Tyres: Front 2 nos.-Solid Rubber | OD 22” x id 16” x w 20” |
| Tyres: Rear 2 nos.-Pneumatic | 12 x 20-20 ply |
